B-6IW
kr 1.500,00
B-6IW Kraftfull ljudkvalitet från JBL - Image

Kraftfull ljudkvalitet från JBL

Omge dig med en fantastisk ljudupplevelse som fyller hela rummet.

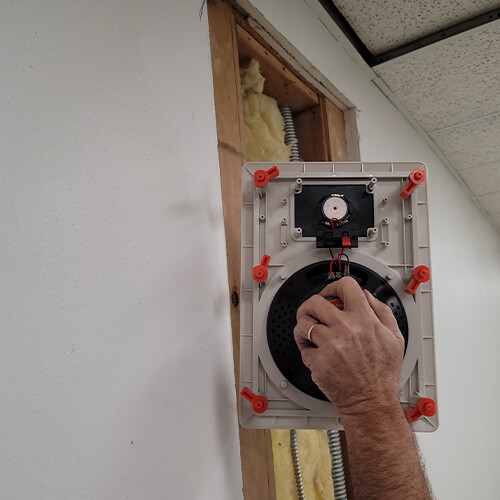

B-6IW Enkel installation - Image

Enkel installation

Fästen av standardtyp gör att installationen går snabbt och ger stadig och pålitlig passning.

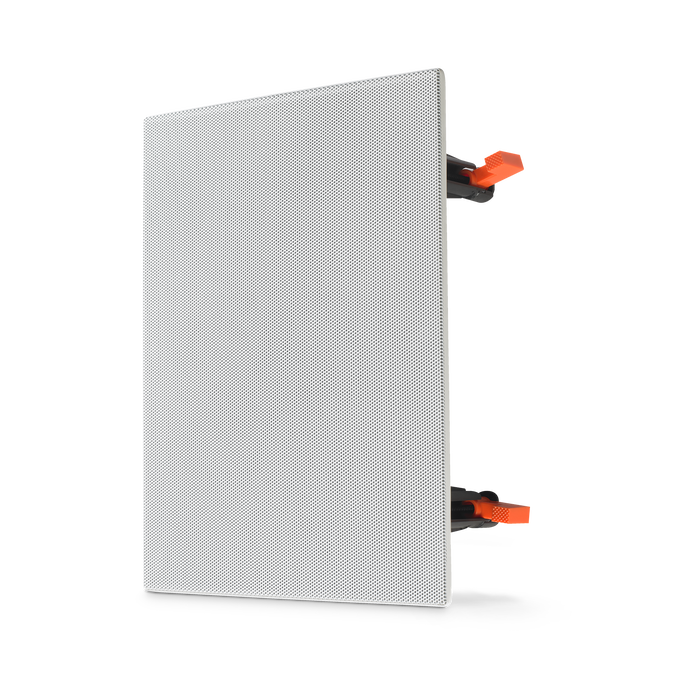

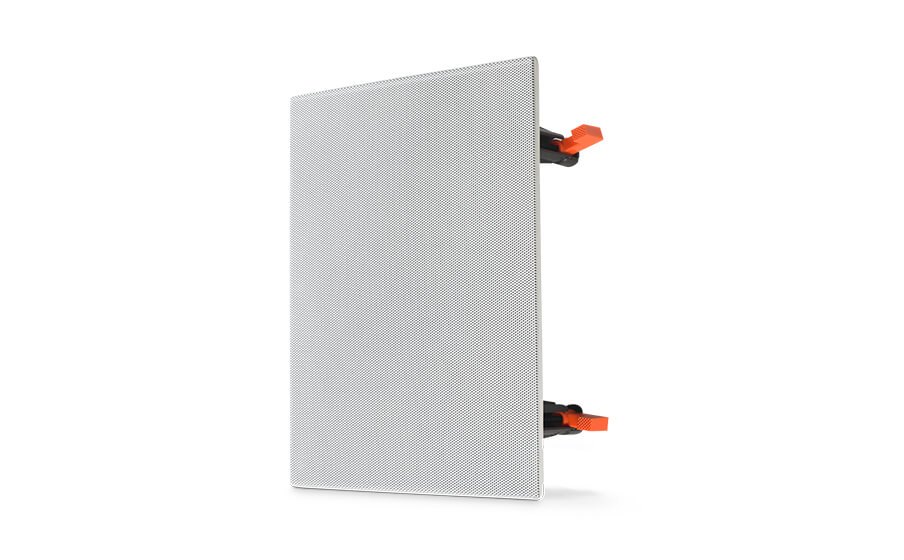

B-6IW Grill i plan nivå - Image

Grill i plan nivå

Gör att de smälter samman med rummets tak eller vägg.

Funktioner

B-6IW Vid ljudspridning - Image

Vid ljudspridning

Upplev ett ljud som fyller hela rummet oavsett vilken vinkel högtalarna installeras i.

Detaljer & Nedladdningar

Item# JBLB6IWWHT

Beskrivning

Högtalarna smälter in. Din musik sticker ut.

Vi presenterar JBL B-serien med infällda takhögtalare. De infällda högtalarna i JBL B-serien är modernt formgivna med grillar som går att måla över, är utvecklade för bred ljudspridning med en praktiskt taget osynlig design, ger kraftfullt JBL-signaturljud och är enkla att installera. JBL B-serien är byggd av kvalitetsmaterial för att hålla och klara hög effekt och ge en komplett ljudbild, och även för att tåla fuktig miljö, vilket gör högtalarna utmärkta för installation i badrum.

Allmänna specifikationer

6,5-tums vägginfälld

Nominell impedans
4 Ω
Effekt (RMS/max)
35/150 W
Frekvensåtergivning
50 kHz–20 kHz
Högtalarkänslighet
91 dB

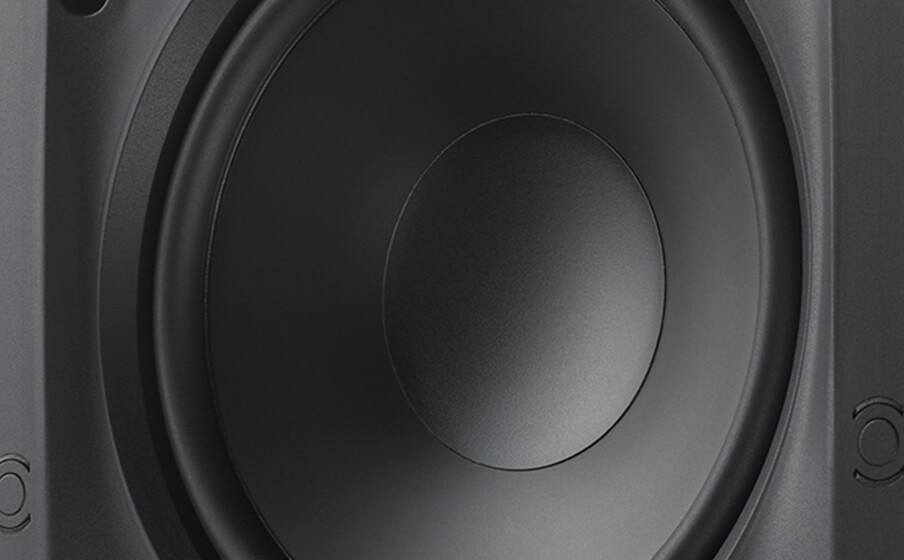

Baselement
6,5 tum (165 mm) polybaselement

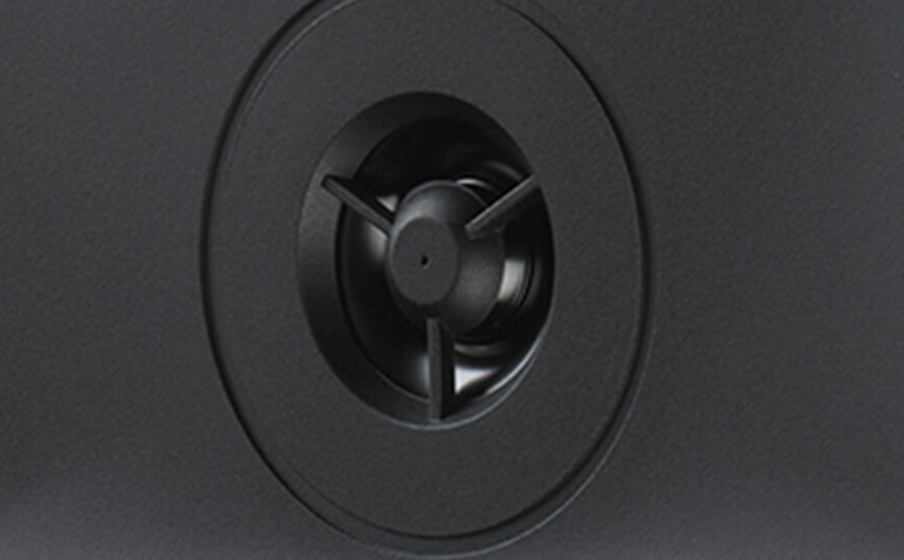

Diskantelement
0,5-tums (13 mm) polymerdiskant
Utskärningsmått
246mm x 182mm
Mått på installerad grill
213mm x 277mm
Monteringsdjup
84 mm

Vad innehåller förpackningen?

  • Huvudenhet
  • Grill
  • Bruksanvisning
  • Väggutskärningsmall
  • Garantikort

Dokument och hämtningar

Omdömen och FAQ

Kundrecensioner

Frågor och svar

Can this speaker connect to my phone? Im looking for an in-wall speaker for my bathroom for music, so I don't need it to connect to a whole system into a theater or anything. just my phone

Asked by: benredler
No, our JBL B-6IW needs an amplifier to work.
Answered by: Jem at Customer Support
Date published: 2021-06-06

I plan on putting the speakers in an exterior wall that will have closed cell spray-in foam insulation....this 3.3” mounting depth is from the plane of wall,  correct?  And the grill sits just slightly proud of the wall plane?

Asked by: Pockets Magee
That is correct.
Answered by: Mario at Customer service
Date published: 2021-06-06

Is there a built in amplifier or do i have to get one seperatly if so what wattage if i want to run 8 of these speakers? What type of speaker wire will i need for this speaker?

Asked by: Zayn
Hey Zayn, great questions you got for us. Our JBL B-6IW in-wall speakers require an external receiver/amplifier to power them as they do not have built-in amplification. As for your other questions, we may need to get more details from you about the kind of setup you want before we can answer them. So we can help you, we suggest that you reach out to our Customer Support team. You can reach us through here: https://support.jbl.com/us/en/customer-service/contact.html
Answered by: Zoe at Customer Service
Date published: 2021-06-06

What is the suggested Amplifier wattage rating for these speakers?

Asked by: Jason23
We would like to work with you directly to help you with your issue. Please submit a case request at  https://www.harmanaudio.com/support-contact.html and the Customer Service Team will be more than happy to assist you.
Answered by: Thilo
Date published: 2021-06-06

Can I use this with AVR 1710S receiver? The speaker spec is 4 ohm and I believe the receiver is 8 ohm. Also is this recommended speaker to be used as center speaker for surround sound setup?

Asked by: sharlpak
Let's try to answer this question for you. A loudspeaker's impedance always dictates how much power a receiver will put out. The lower the impedance a receiver detects from the speaker, the higher audio power it will send to the speaker. In this case, our Harman Kardon AVR 1710S can put out 100 watts of continuous power at 6 or 8 ohms and our JBL B-6IW speaker is capable of handling only 35 watts of continuous power at 4 ohms. We don't recommend these two products together because the AVR will end up sending too much power that the speaker can't handle. If you'd like to find out what speakers we do recommend for you to use, in line with what kind of set up you want to achieve, send us a case request through this link and we'll be happy to help you out further: https://www.harmanaudio.com/support-knowledgebase.html
Answered by: Zoe at Customer Service
Date published: 2021-06-06
