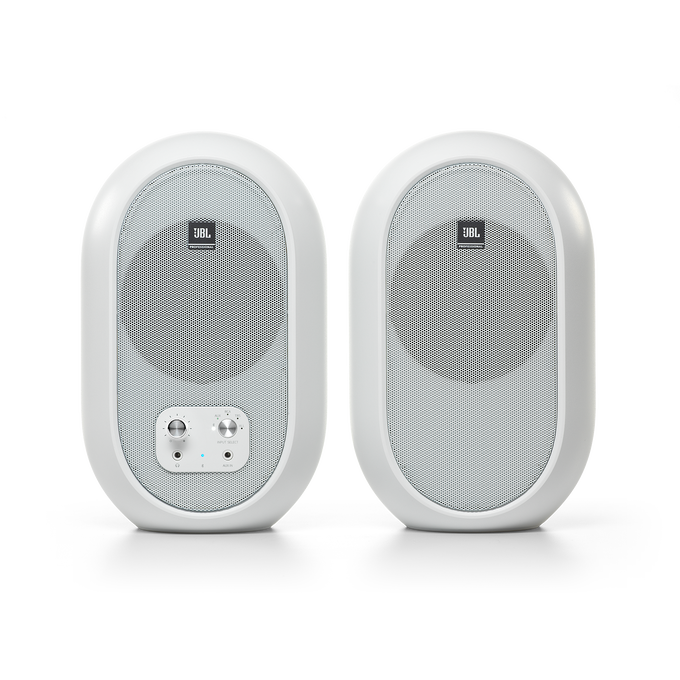

JBL 104-BT (Pair)
kr 2.690,00
JBL 104-BT (Pair) Koaxialelement - Image

Koaxialelement

Med 4,5-tums element för låga frekvenser och 0,75-tums softdome för höga frekvenser

JBL 104-BT (Pair) Inbyggd 60-watts klass D-effektförstärkare - Image

Inbyggd 60-watts klass D-effektförstärkare

Ger 30 W till varje högtalare

JBL 104-BT (Pair) Akustiskt optimerad - Image

Akustiskt optimerad

För placering på bord

Funktioner

JBL 104-BT (Pair) Tre uppsättningar av ingångar och inbyggt Bluetooth - Image

Tre uppsättningar av ingångar och inbyggt Bluetooth

Tillåter inkoppling av professionell utrustning, personliga musikspelare och konsumentprodukter

JBL 104-BT (Pair) Smarta funktioner - Image

Smarta funktioner

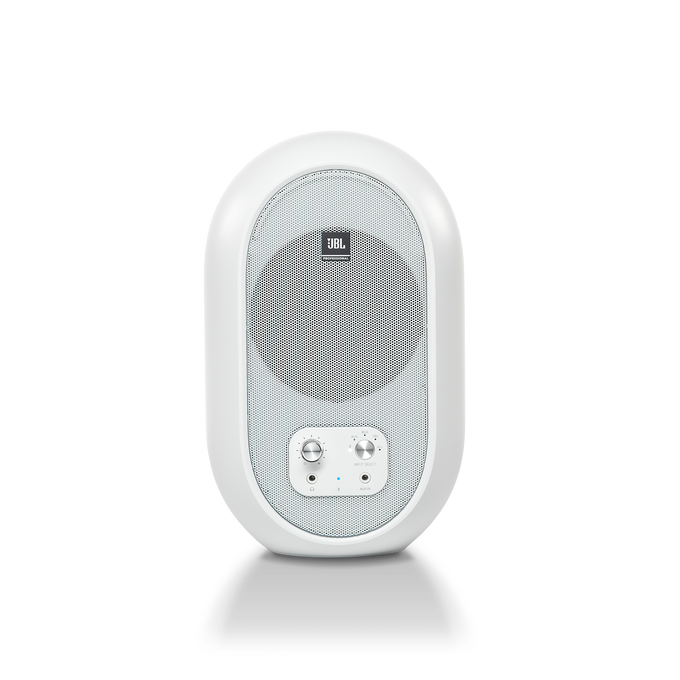

Volymkontroll på frontpanelen, ingångsväljare och hörlursuttag med automatisk mikrofondämpning

Detaljer & Nedladdningar

Item# 104SET-BTW-EK-LS

Beskrivning

Legendarisk ljudkvalitet – utan kablar

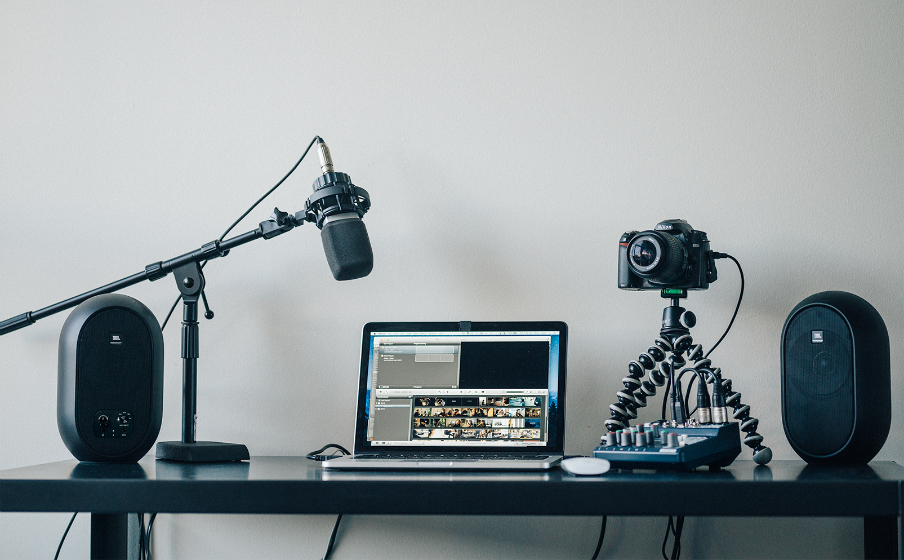

JBL 104-BT kompakta medhörningsmonitorer med Bluetooth, de nyaste modellerna i 1 Series, från JBL med sju decennier av professionell utveckling, ger det mest realistiska och exakta ljudet i sin klass. De är utmärkta för inspelande musiker, producenter, podcasters och videobloggare, men även för professionella ljudtekniker som söker exakt bärbar medhörning med Bluetooth-anslutning. JBL 104-BT medhörningsmonitorer har ett kraftigt 4,5-tums koaxialelement för låga frekvenser och en 0,75-tums softdome-diskant, inbyggd 60-watts förstärkning och en innovativ akustisk design för att återge ett ärligt ljud med exceptionell ljudbild och spröda detaljer. Med Bluetooth-anslutning kan du kontrollera mixningen via Bluetooth och skapa rätt ljud för varje lyssningsscenario. Både de svarta 104-BT och de vita 104-BTW har eleganta och kompakta utföranden, och imponerar i varje studio samtidigt som de sparar värdefull arbetsyta. Kreativa proffs, musikälskare och alla andra som vill ha möjlighet att spela både trådbundet och trådlöst ljud i högkvalitativa studiomonitorer kan räkna med att JBL 104-BT levererar en exakt, tillförlitlig ljudreferens och en verkligt njutbar lyssningsupplevelse.

Device Compatibility

Bluetooth

Allmänna specifikationer

Bluetooth-version
5.0
Lågfrekvenselement
4,5 tum (118 mm)
Högfrekvenselement
0,75 tum (19 mm), soft-dome
Delningsfrekvens
1 725 Hz, 1:a ordningen
Effektförstärkning
60 W (30 W per högtalare), klass D
Känslighet
87 dB SPL vid 1 m med -10 dBV aux-ingång (maxvolym)
Max kontinuerlig SPL
89 dB
Systemets topp-SPL
102 dB (pink noise, 12 dB toppfaktor)
Max SPL, tillfällig topp
104 dB
Max högsta ingångsnivå (-10 dBV / +4 dBu)
+6 dBV/+20,3 dBu
Frekvensområde (-3 dB SPL)
88–20 000 Hz
Frekvensområde (-10 dB SPL)
60–20 000 Hz
Systemimpedans
8 Ω
Lägsta impedans
7,8 Ω vid 260 Hz
Avstämningsfrekvens, kabinett
72 Hz
Systemdistorsionsgränser
<10 % THD vid max effekt med full inkoppling av kompressor/limiter
Elektriska distorsionsgränser
<0,2 %THD vid 1 kHz, 2,83 VRMS-utgång, <1 % THD vid 1 kHz, full märkeffekt
Signal/brus-förhållande
75 dBA (A-viktad), 70 dBr (oviktad), relativt 2,83 VMRS uteffekt på HF
Täckning (horisontell x vertikal)
120º x 60º
Acoustic Test Specification
ATS# 1000340443

Mått

Höjd
247 mm
Bredd
153 mm
Djup
124 mm
Nettovikt
Huvudmonitor

Design

Enclosure Type
Ported
Enclosure Material
ABS with metal grille
Enclosure Finish
Matte black acrylic paint (104-BT) ; Matte white acrylic paint (104-BTW)

Audio Output

System Output Type
1/8" stereo headphone with auto speaker mute

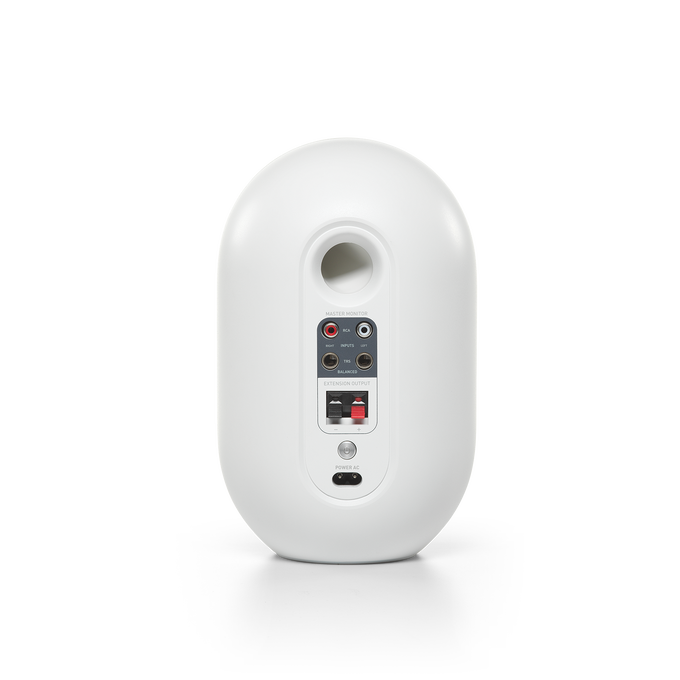

Audio Input

System Input Type
Bluetooth, 1/8" Aux, RCA, 1/4" TRS balanced
Input Selection Options
Bluetooth, Aux, RCA, TRS, All

Powering Interface

System Power Handling
30 W x 2 @ 100 hours, IEC/SMS
System Polarity
EIA
AC Input Voltage
100 – 240 VAC (± 10%), 50/60 Hz
Current Draw
85 watts
Electrical Current Draw (W) Idle 100 / 240 VAC
3.52 / 3.70
Electrical Current Draw (W) Max Power 100 / 240 VAC
80 / 80
Electrical Current Draw (W) Low Power Standby Mode 100 / 240 VAC
0.34 / 0.46

Vad innehåller förpackningen?

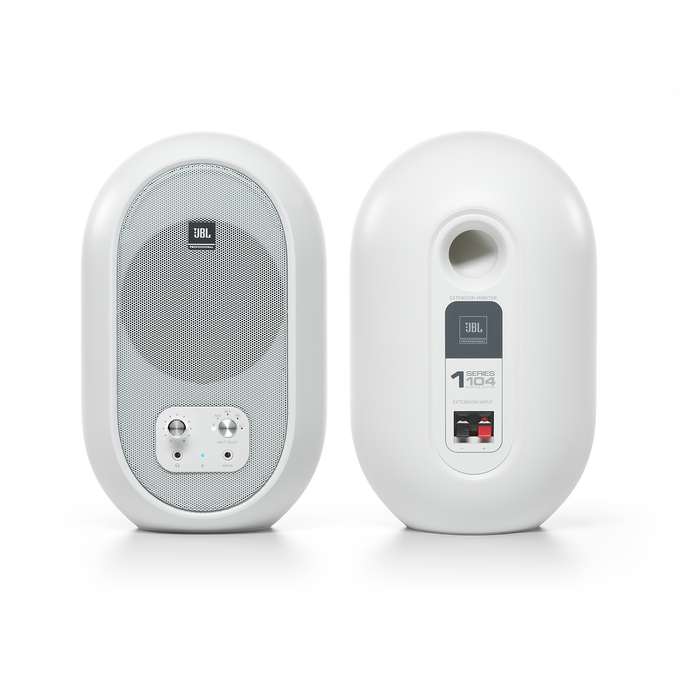

  • 1 x 104-BT mastermonitor

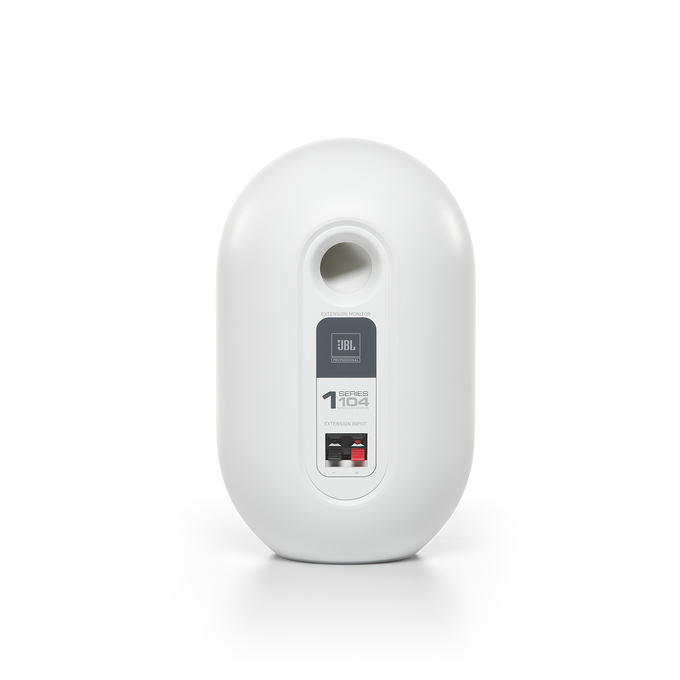

  • 1 x 104-BT extramonitor
  • 1 x högtalarkabel till extramonitor (2-ledare, 2 m)
  • 1 x 3,5 mm till RCA-ljudkabel
  • 1 x regional strömkabel
  • 1 x snabbstartsguide
Vad innehåller förpackningen?

Dokument och hämtningar

Vad säger proffsen

Wired:

Wired:

“En suveränt prisvärd monitor som inte stökar ner skrivbordet. De här högtalarna av referenskvalitet visar tydligt varför det är värt att lägga pengar på en bra inspelningsmikrofon, som får fram alla detaljer som lyfter materialet.”

CinemaSound:

CinemaSound:

“Om du behöver ett tillförlitligt högtalarsystem som måste ta lite plats kan det inte bli bättre än med 104. De levererar mer än de ska.”

Music Connection:

Music Connection:

“Ett bra val för nästan all användning i vilket rum som helst när du är ute efter bra ljud i en liten, stilig och stationär högtalare”

American Songwriter:

American Songwriter:

“Mycket mer sofistikerad än någon annan skrivbordsmonitor jag någonsin använt… tillräckligt liten för att få plats på ett trångt skrivbord, men levererar ändå ett kraftfullt och utmärkt ljud.”

Guitar Player:

Guitar Player:

“1 Series 104-monitorerna lät genomgående fantastiskt och levererade detaljrik diskant och imponerande bas med tanke på storleken ”

Red Dot Winner 2020

Red Dot Winner 2020

Omdömen och FAQ

Kundrecensioner

Rated 3 out of 5 by from Not really a sweet spot The sound quality of these speakers is incredible, but they suffer from trying to be too many different things at once. They don't really work as general listening or computer speakers – the sound is too flat and just nowhere near as immersive as you could get from other options at the same price-point; your ears will be left wanting. They *also* don't really work as hi-fi or monitor speakers, due to the absence of bass (which is very noticeable). I thought these would be a decent substitute for the 305s, which were out of stock, but I was pretty disappointed. I would suggest if you are looking for monitors even at the intro level to just save up for something slightly more expensive.
Date published: 2021-05-31
Rated 5 out of 5 by from Great Sound I bought these to replace a set of blown-up KRK Rokit 5s (G2) because the amp sections had died, probably bad caps in the amp section. Replacing the amp sections was economically unfeasible so I found these online and decided to take the plunge. What a pleasant surprise. JBL hits another home run!!!
Date published: 2020-04-11
Rated 5 out of 5 by from Great for Laptop Installed the 104-BT’s 8-6-20. Just regular sound was bassy but I adjusted the EQ lows down a little and increased the highs and the sound quality was GREAT. Very pleased with the purchase.
Date published: 2020-08-07
Rated 5 out of 5 by from Great studio reference monitors. These are some of the best speakers I've ever owned. They are amazing for listening to music casually or using them as serious studio monitors when creating music.
Date published: 2020-07-11
  • y_2023, m_5, d_31, h_22
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.35
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_4
  • loc_sv_SE, sid_jbl-104-bt, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_jbl
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 5ms
  • reviews, product

Frågor och svar

My 104's aren't picking up my laptop's Bluetooth signal. My laptop hasn't given me issues with any other Bluetooth device. I keep turning them off and on but nothing is happening as far as the Bluetooth picking them up. They are brand new. Help, please.

Asked by: HEROMUNDO
Hold the input select button until you see blue light blinking then search for jbl 104-bt on your laptop and pair it.
Answered by: BabaSachin
Date published: 2021-06-06

is it possible dont HEAR the &quot;TURN ON SOUND&quot; every time i turn it on?

Asked by: Matias Orpianesi
Hello, great question. Currently there is no way to turn off that sound.
Answered by: HARMAN Adviser
Date published: 2021-06-06

Are the 2 balanced TRS inputs Left and Right channel respectively or can one TRS input support both L/R channels?

Asked by: Soother
For inquiries regarding this professional product, you may call Harman Pro at 844-776-4899 or send an email to HProTechSupportUSA@harman.com. Monday to Friday, 9 am to 6 pm (EST).
Answered by: Jem at Customer Support
Date published: 2021-06-06

Can I use two inputs simultaneously(not just plugged but playing simultaneously) with these speakers ?

Asked by: AugustoP
Hello, great question! Yes -- by selecting 'All' on the main monitor, you can play multiple sources simultaneously.
Answered by: HARMAN Adviser
Date published: 2021-06-06

Just bought 104-BTs when turned off from laptop they return to speakers on laptop and have to be reset everytime.

Asked by: james1
Hello, we're not entirely sure we understand the situation, but here's our best attempt at helping: Consumer Bluetooth devices (headphones, etc.) automatically connect to a known device (phone, etc.) immediately after a device is turned on. Because these speakers have multiple input sources, it does not default to the Bluetooth input when powered on, thus requiring you to physically press the Bluetooth button when they&rsquo;re ready to sync the speakers to a device. Hopefully this helps, but please reach out to HARMAN Support if you continue experiencing issues.
Answered by: HARMAN Adviser
Date published: 2021-06-06

How far apart can the 2 speakers be placed?

Asked by: sr2884
The speakers have to be placed at arm's length for optimal sound output. Check out the diagram on page 2 of our Quick Start Guide here: https://jblpro.com/en/site_elements/jbl-104-bt-quick-start-guide
Answered by: Chastine
Date published: 2022-08-08

Is this product compatible with the LSR310S subwoofer?

Asked by: iamkespinosa
Please contact our Professional Division at Phone: 844-776-4899 (8:00AM-6:00PM CST M-F) | Email: hprotechsupportusa@harman.com
Answered by: Ray at Customer Support
Date published: 2022-11-09

Just purchased your 104-BT Monitors. Is there any way to disable that annoying blast of intro noise when you first turn on the monitors? The monitors seem solid. Still getting used to the shape of the monitors.

Asked by: clatour
For inquiries regarding this professional product, you may call Harman Pro at 844-776-489 or send an email to HProTechSupportUSA@harman.com. Monday to Friday, 9 am to 6 pm (EST)
Answered by: Jem at Customer Support
Date published: 2021-06-06
